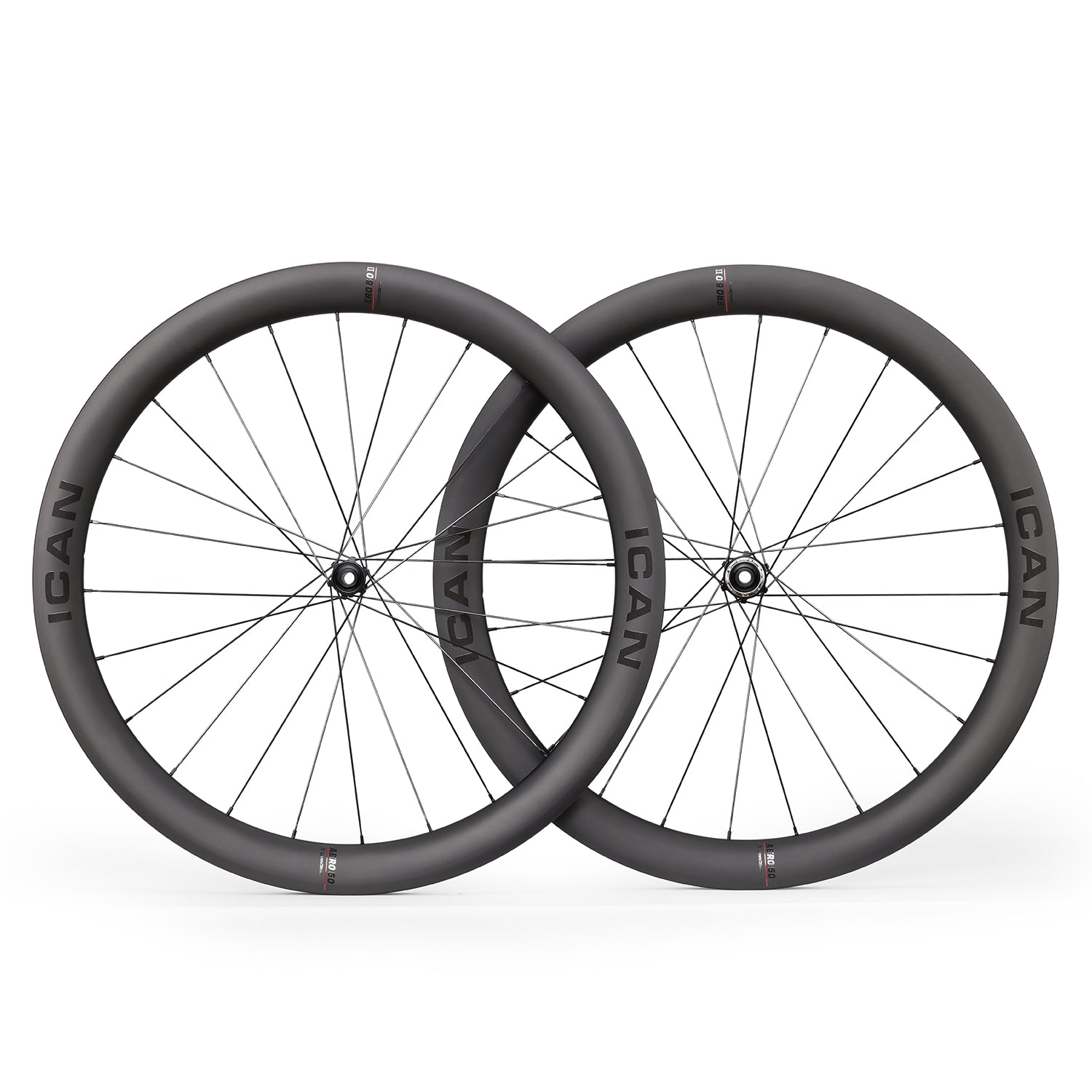

AERO 50 Disc
- Clincher tubeless ready
- 18.35mm internal rim width, 25mm external width
- Sapim CX-Ray spokes
- Sapim Secure Lock nipples
- Recommended Tire Size: 25mm – 28mm
- €680,95
- €680,95
- Unit price
- per
10 customers are viewing this product
Couldn't load pickup availability
Fast Delivery
15-Year Quality Assurance
2-year Warranty
The Aero 50 is a 50mm deep section rim. I’m sure you can see what we did there.
The Aero series is based on our highly successful Fast and Light series., which was a tubeless aero range of wheels constructed using Toray T700 carbon fiber. We designed these wheels to be light, stiff, and strong while being a wide blunt aero shape.
We wanted to keep those features and make the wheels lighter. Our engineers tried out various new layups and in the end designed a new layup using both T700 and T800 carbon fiber. The new layup allowed the wheels to be around 100g per wheelset lighter and still retain their stiffness and strength while still being the same aero shape.
We need an amazing new hubset to go with these wheels. Our engineers came up with the D01 hubset. A sealed bearing hubset that we have made available in both Centrelock and 6-bolt rotor pattern to allow you to fit the rotors of your choice.
To lace our new hubs to our new carbon fiber rim, we picked the best aero spokes available on the market. We choose Sapim CX-Ray spokes. These spokes offer titanium weight but not titanium flex. They lead the way in their combination of weight and stiffness.
To finish off the package we have equipped this wheelset with a two-year warranty to bring you peace of mind.
Features
Wide Rim Tech
25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.
2-Way Clincher Tubeless. Tubes or No-Tubes
Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.
Sapim CX-RAY As light as a titanium spoke
The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.
Specification
| Type | Carbon Disc Wheelset |
| Material | Carbon Fiber Toray T700 & T800 |
| Size | 700C |
| Rim |
Drills: 24/24 Holes Inner Width: 18.35mm |
| Depth | 50mm |
| Profile | Clincher Tubuless Ready |
| Hub |
ICAN D01 / DT240EXP-36T Centerlock, 12x100/12x142mm |
| Spoke | Sapim CX-Ray Spokes |
| Spoke Count | Front: 24 Rear: 24 |
| Spoke Pattern |
Front: 2-cross Rear: 2-cross
|
| Nipple | Alloy Color: Black |
| Cassette Compatibility | Shimano 11 speed |
| Wheelset Weight |
ICAN D01 Total: 1468+-20g Front: 670+-10g Rear: 798+-10g DT240EXP Total: 1506+-20g Front:688+-10g Rear:818+-10g |
| Braking Surface | No Braking Surface |
| Recommended Tyre Size | 700 x 25-28mm |
| Rider Weight Limit | 105kg |
| Guarantee | 2 years |
| Free |
Rim Tape Valves |
| Packing Size | 81.5cm x 17cm x 65.5cm |
Recommended Tire Pressure
Below Chart is our recommended tire pressure,you can see more click here.
| STANDARD CLINCHER TIRE WITH INNER TUBE | TUBELESS TIRES | |
|---|---|---|
| ≤ 65 KG RIDER | 23mm - 95/100 psi 25mm - 90/95 psi 28mm - 85/90 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 80/85 psi |
| 65 - 75 KG RIDER | 23mm - 100/105 psi 25mm - 95/100 psi 28mm - 90/95 psi |
23mm - 90/95 psi 25mm - 85/90 psi 28mm - 85/90 psi |
| 75 - 85 KG RIDER | 23mm - 101/106 psi 25mm - 96/101 psi 28mm - 91/96 psi |
23mm - 95/98 psi 25mm - 90/95 psi 28mm - 85/90 psi |
| 85 - 95 KG RIDER | 23mm - 104/109 psi 25mm - 99/104 psi 28mm - 94/100 psi |
23mm - 95/99 psi 25mm - 90/95 psi 28mm - 88/95 psi |
IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
