ICAN A9 Carbon Road Disc Bike Frameset Geometry
ICAN A9 Carbon Road Disc Bike Frameset Front Fork Geometry
ICAN A9 Carbon Road Disc Bike Frameset Front Fork GeometryICAN A9 Carbon Road Disc Bike Frameset Size Recommendation

AERO Road Disc Bike A9 (Chinese L-TWOO R9)

  • UCI approval frame
  • Aerodynamic design
  • BB86 bottom bracket
  • Internal cable routing
  • Di2 supported
  • L-TWOO groupset
€2.222,95
€2.222,95
Size: 52cm
Subtotal: €2.222,95
10 customers are viewing this product

Fast Delivery

15-Year Quality Assurance

2-year Warranty

AERO Road Disc Bike A9 (Chinese L-TWOO R9)

AERO Road Disc Bike A9 (Chinese L-TWOO R9)

€2.222,95

AERO Road Disc Bike A9 (Chinese L-TWOO R9)

€2.222,95
Size: 52cm

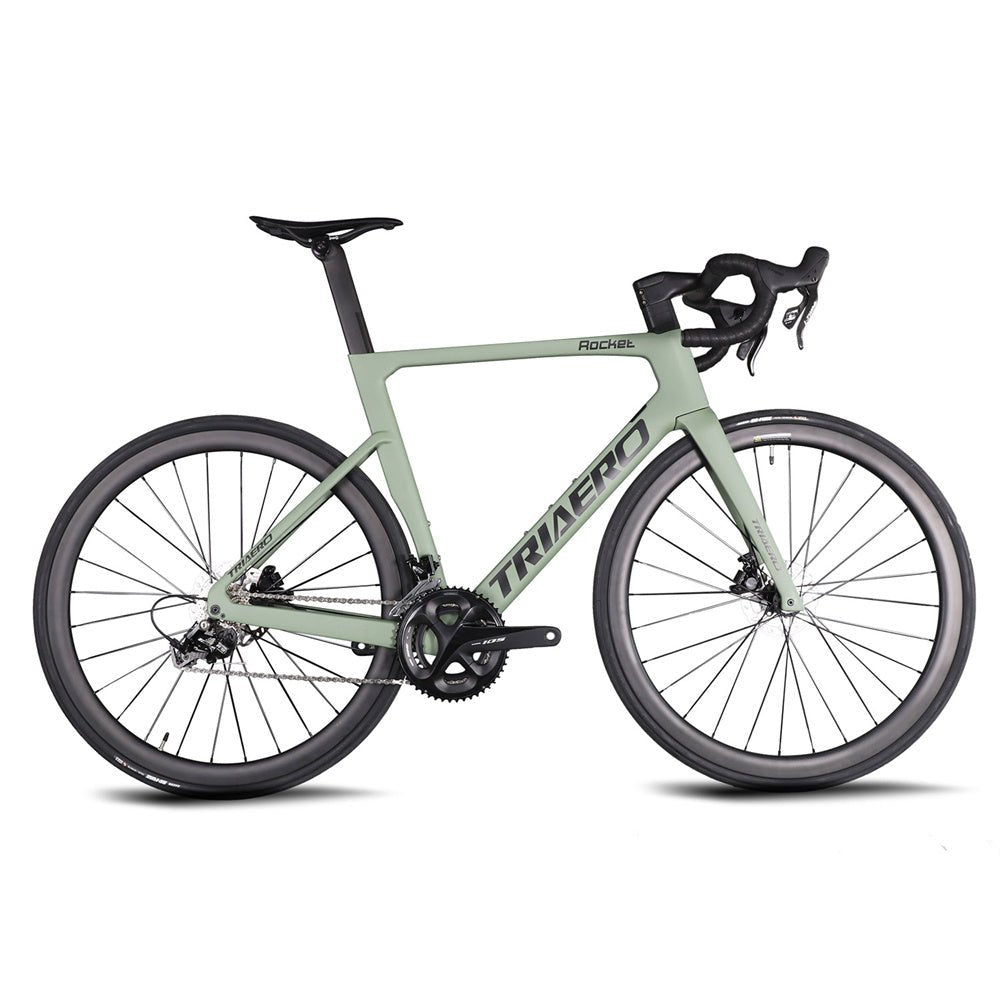

Gravity and wind, in cycling these elements could be your best friend or your worst enemy. A light bike rolls smoother, and an aerodynamic frame minimizes wind resistance. You put light and aerodynamic together, and you get the Disc Road Bike A9. Once you go Aero, you can never go back. The A9 is a superlight road bike that manufacturers recommend for racing.
Constructed almost entirely with a mix of Toray T700 and T800 carbon fiber cloths, the A9 has stiffness and low weight qualities that are matched by a few. The carbon TRIAERO A9 frame features an aerodynamic profile. This frame comes with a Toray T800 TRIAERO A9 flat mount Carbon Fork.
The physical appearance of the A9 shouts BRILLIANCE and SOPHISTICATION. A dropped back seat with a carbon SD006 saddle ensures the comfortability of the rider. The frame supports an internal cable or hose system for the brakes and gears, adding to the safety advantages of the A9.

Frame:

Model: Full Carbon Super Light /Aero/Disc/Ineternal Cables Triaero A9

Front fork spacing: Carbon Rigid Fork T800 Triaero AO9, 100*12mm, Flat Mount 160mm

Size: 54cm

Rear spacing: 142*12mm, Flat Mount 140mm

Wheelset:

Rim: Alpha 50 disc Pro

Hub: D21 Center lock, front 12x100mm/rear 12x142mm

Holes: Front: 24h Rear: 24h

Spokes: Pillar SA1423, Black

Nipples: Alloy, Black

Thru axles: Titanium

Tires: MAXXIS 700C*28

Groupset: L-TWOO R9 11 Speed

Drivetrain: Chinese L-TWOO GR9 DISC
Shifters: R9 Series 2*11s  Carbon HYDRAULIC SHIFTER
Rotors: Front SHIMANO 160 MM rear SHIMANO 140 MM
Front derailleur: FD-R5011-D
Rear derailleur: RD-R5011-M-A
Crankset: SHIMANO ULTEGRA R7000  172.5mm 50/34T
Cassette: SUNSINE 11S
Chain: KCM 11S

Others:

Headset: 1-1/2'' to 1-1/2''

Handlebar: HBA40

Saddle: Carbon SD006

Complete Bike Weight: 8.48kg (excluding pedal)

Warm reminder: The sample bike is only for reference. Please refer to the real-time inventory for specific configuration. If individual configurations have been upgraded, we will upgrade you to the latest configuration.

Warranty Policy

Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.

Product Group:

Frame and Rim

Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.

Coverage:

2-year warranty from the date of purchase.

Conditions:

  1. If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
  2. If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
  3. The Warranty program is not transferable and only applies to the initial purchaser.

This warranty does not cover:

  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • Consequential or incidental damages (where applicable)
  • Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
  • Counterfeit products
  • Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service

Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.

The following will void your warranty

  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels

More details can be known from "Warranty & Return".
