ICAN A9 Carbon Disc Road Bike Frameset A9 Dsic Brake Frameset
ICAN A9 Carbon Road Disc Bike Frameset Geometry
ICAN A9 Carbon Road Disc Bike Frameset Front Fork Geometry
ICAN A9 Carbon Road Disc Bike Frameset Size Recommendation
ICAN A9 Carbon Disc Road Bike Frameset A9 Dsic Brake Frameset
ICAN A9 Carbon Disc Road Bike Frameset A9 Dsic Brake Frameset

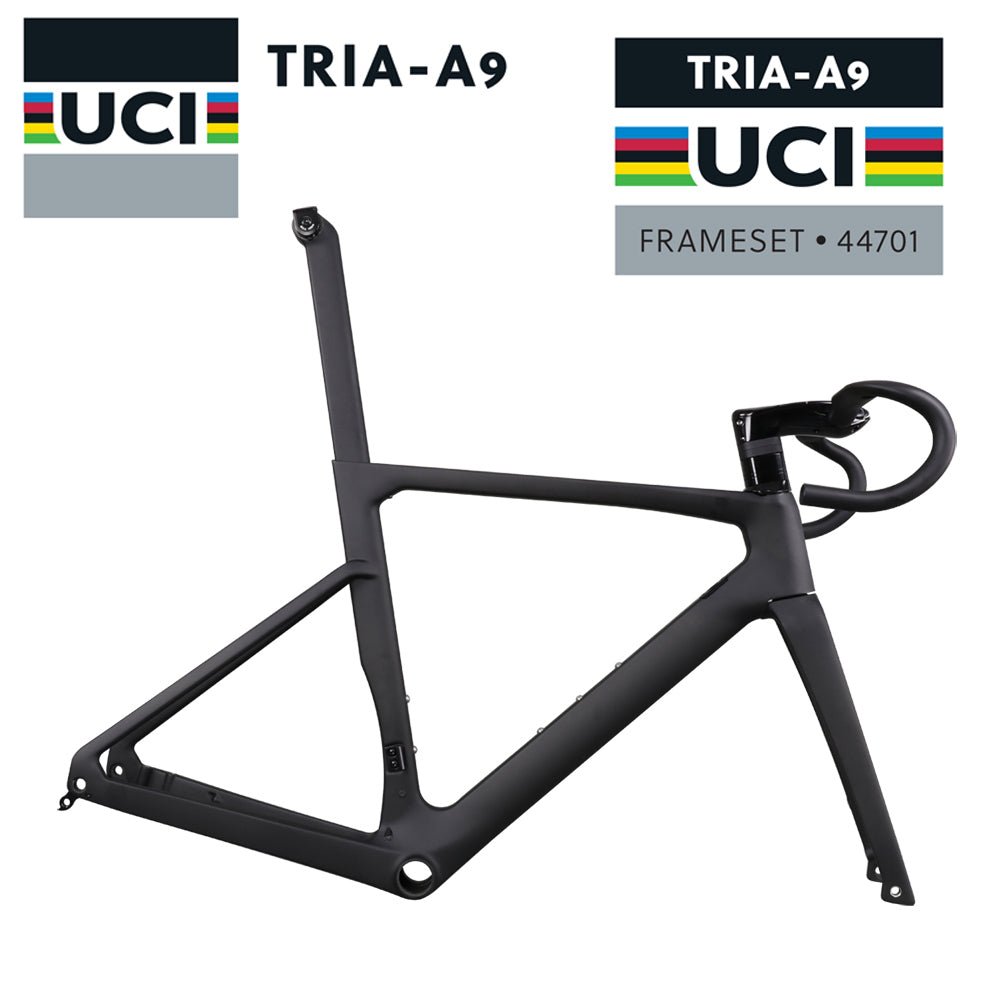

UCI Disc Road Frame A9

  • Aero design
  • UCI approval road bike disc frame
  • Full internal routing
  • BB86 bottom bracket
  • Di2 supported
€924,95
€924,95
Painting: UD Matt
Size: 46cm
Subtotal: €924,95
10 customers are viewing this product

Fast Delivery

15-Year Quality Assurance

2-year Warranty

ICAN A9 Carbon Disc Road Bike Frameset A9 Dsic Brake Frameset

UCI Disc Road Frame A9

€924,95

UCI Disc Road Frame A9

€924,95
Painting: UD Matt
Size: 46cm



Introduction

Crafted with precision and utilizing advanced carbon fiber technology, the A9 frame embodies a perfect balance of lightweight construction and exceptional strength. Its aerodynamic design enhances speed and efficiency, making it an ideal choice for competitive racing or demanding road cycling. The frame's geometry is meticulously engineered to provide optimal comfort, handling, and power transfer, ensuring a superior riding experience.

Specification:

Model: A9

Type: Road Bike Disc Brake Frame

Material: Carbon Fiber Toray T700 & T800

Weave: Matt

Weight: Frame-1090g ;  Fork-410g ;  Seat Post-320g (52cm)

Available Size: 46 / 49 / 52 / 54 / 56 / 58cm

BB: BB86

Cable: All Internal Cable

Fork End: 12 x 100mm

Rear Spacing: 12 x 142mm

Disc Front and Rear: Front 160, Rear 140, Flat Mount

Headset Size: Top 1-1/2" , Down 1-1/2"

Handlebar: 400x90mm / 420x100mm / 440x110mm

Package Included: 1 x Frame + 1 x Fork + 1 x Seat Post + 1 Headset + 1 x Integrated Handlebar + 2 x Thru Axles + 1 x Hanger

Features:

Aerodynamic Design:

The ICAN A9 frame boasts an aerodynamic design meticulously crafted to not only minimize drag but also to optimize airflow, resulting in a substantial enhancement in overall speed. This feature positions it as the ultimate choice for cyclists aspiring for heightened performance, ensuring a seamless blend of cutting-edge aerodynamics and superior speed capabilities.

Lightweight Construction Carbon Fiber T800 & T700:

With a focus on minimizing weight without compromising strength, the A9 frame is constructed using advanced materials, resulting in a lightweight build that enhances agility and responsiveness during rides.

Internal Cable Routing:

The key benefits of a full internal cable routing system include enhanced aerodynamics, reduced air resistance, and an overall sleek and clean appearance. By concealing the cables within the frame, the bike not only cuts through the wind more efficiently but also presents a polished and streamlined aesthetic. Additionally, the internal routing minimizes exposure to external elements, contributing to improved durability and reduced maintenance requirements. This design choice not only prioritizes performance but also elevates the overall aesthetics of the ICAN A9 road bike, making it an ideal choice for cyclists who appreciate both form and function.

Multifunctional Compatibility:

The ICAN A9 frame is designed with versatility in mind, offering compatibility with both mechanical and electronic groupsets. This feature allows cyclists to customize their riding experience based on personal preferences and specific cycling regulations.

Stiff And Equipped With BB86 Bottom Bracket:

The frame's stiffness ensures efficient power transfer from the rider to the wheels, translating into a more responsive and energy-efficient cycling experience. The BB86 bottom bracket standard offers several advantages in the realm of cycling. This configuration, characterized by an 86.5mm-wide shell with bearings pressed directly into it, enhances overall stiffness and power transfer in the bicycle frame. The wider stance of the BB86 provides a robust platform for the crankset, reducing flex and ensuring efficient energy transmission from the rider to the drivetrain.

UCI Certification:

The ICAN A9 frame is certified and approved by the Union Cycliste Internationale (UCI), which governs international bicycle racing. Only products that pass rigorous testing receive this certification, allowing them to be used in UCI-sanctioned road races.

Custom Painting Services

We have a professional design and painting team to provide you with professional customized painting services. Our service allows you to create a personalized paint job that truly makes your bike stand out. Visit our painting website at icancustompaint.com to bring your dream design to life.







Warranty Policy

Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.

Product Group:

Frame and Rim

Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.

Coverage:

2-year warranty from the date of purchase.

Conditions:

  1. If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
  2. If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
  3. The Warranty program is not transferable and only applies to the initial purchaser.

This warranty does not cover:

  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • Consequential or incidental damages (where applicable)
  • Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
  • Counterfeit products
  • Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service

Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.

The following will void your warranty

  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels

More details can be known from "Warranty & Return".
